Case Study
Crosswinds
Residential PV Installation
Bromsgrove
Originally quoted for a ground-mounted system at residence in Bromsgrove, we identified a west-facing stable roof suitable for solar, avoiding planning permission and keeping future expansion options open.
Challenges
Crosswinds is a dual-family property with high annual energy usage. Previous proposals had focused on a ground-mounted system requiring planning permission, and it was suggested that a larger inverter would not be approved by the DNO.
- Ground-mount would have required planning permission
- 90 m cable run from roof to inverter/battery location
- Whole-home backup required for power cuts
Our Solution

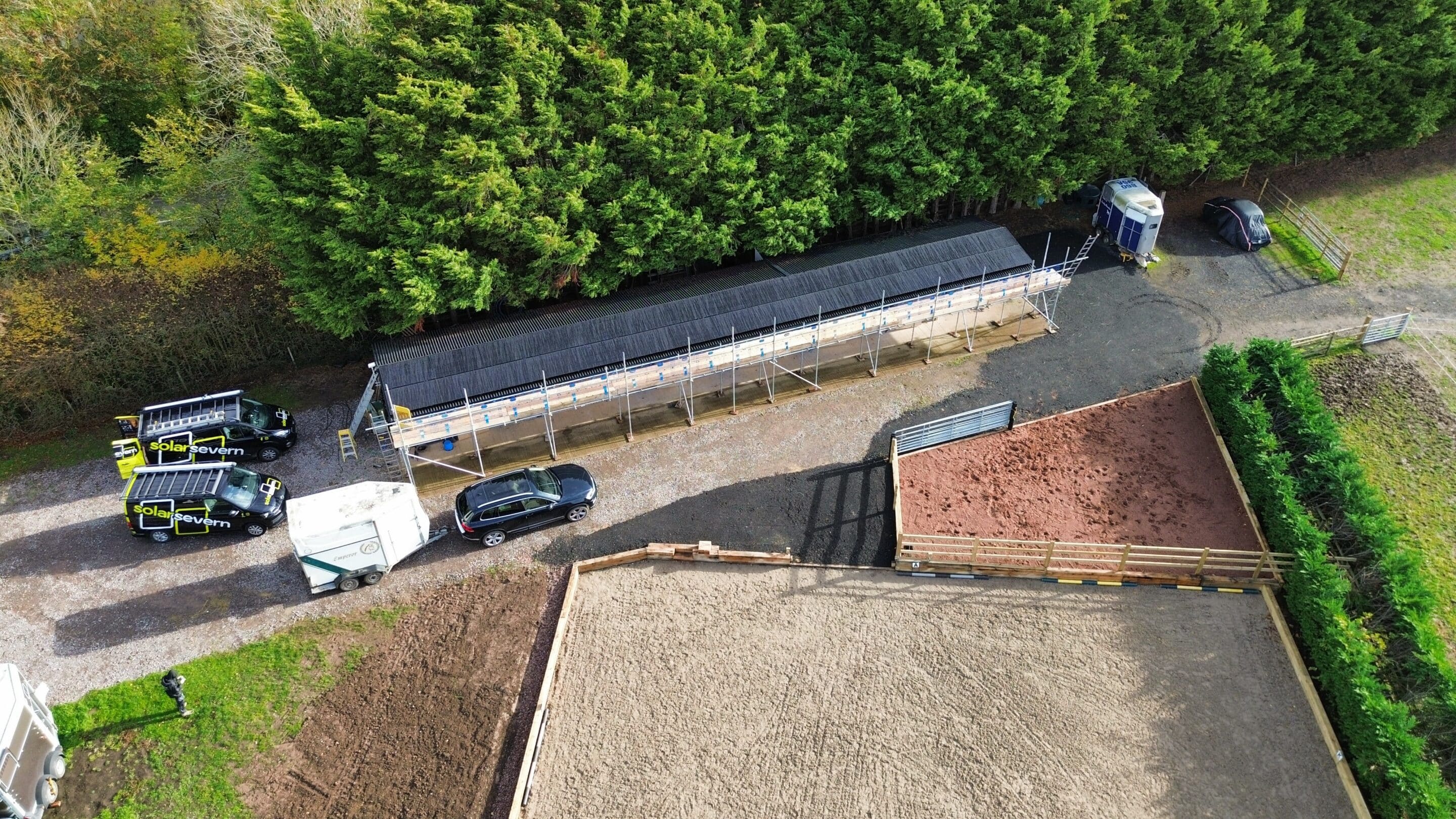

Solar Severn identified significant generation potential on a large west-facing stable roof, removing the need for a ground mount. We submitted a DNO application for a 12kW inverter to future-proof the system and secured approval with a 6kW export limitation, an excellent outcome for the client.
- High-efficiency PV system on the west-facing stable roof
- Trench and ducting installed for the 90 m cable run

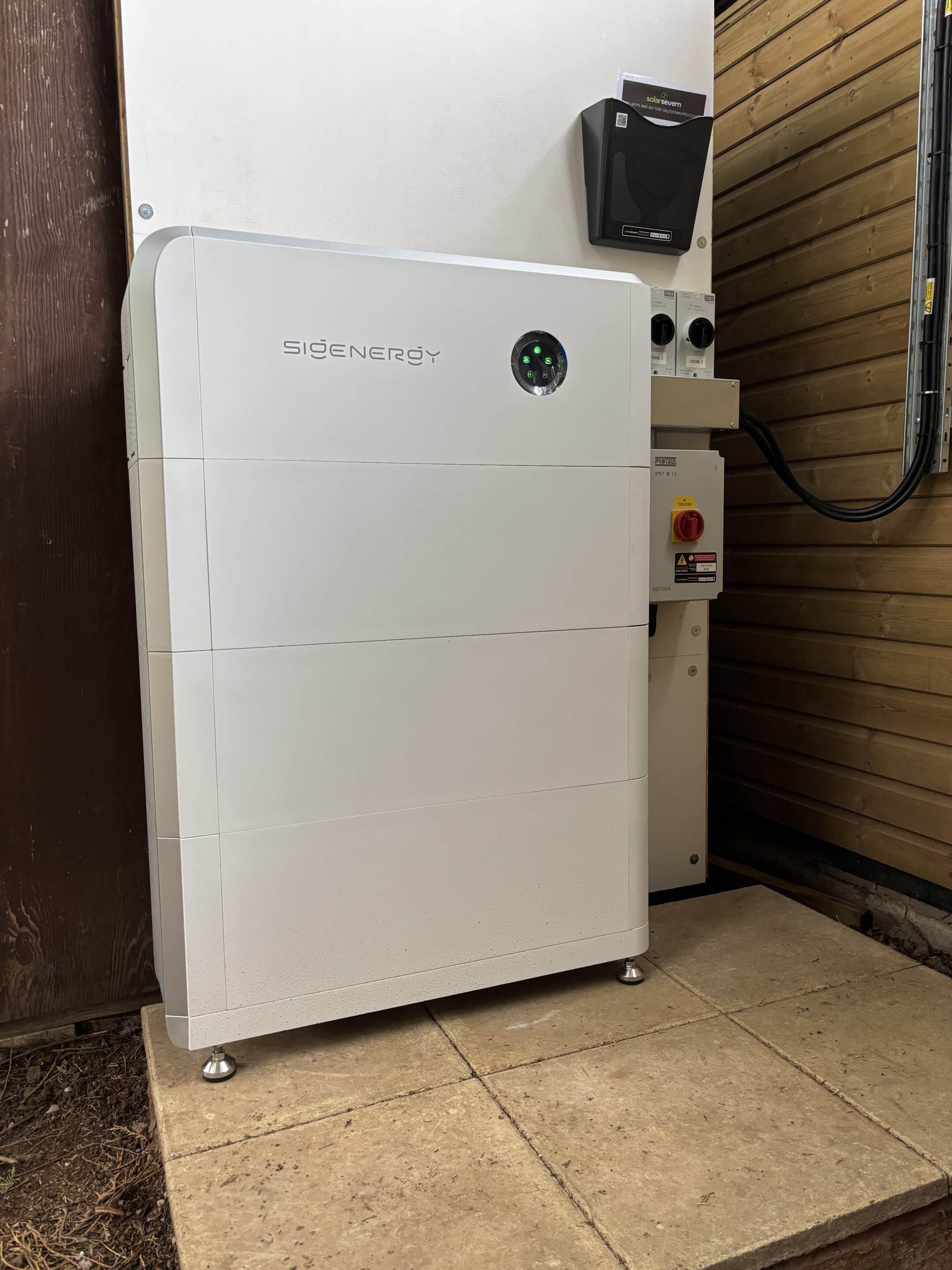

- SigEnergy Gateway for whole-home backup
- 12 kW SigEnergy Energy Controller with 3 × 10 kWh batteries
- Future-ready for additional panels or storage
Project Highlights
The installation includes substantial battery storage, a backup gateway for power outages, and capacity for future expansion, including additional panels or further storage. Due to the distance to the stable, we trenched and installed ducting for a large armoured cable, carefully managing volt drop considerations. The full array was bird-protected due to nearby conifers.
The project was completed smoothly within one working week, delivering a high-performance, future-ready solar solution in Bromsgrove.
- Estimated annual electricity generation: 9,859 kWh
- Estimated annual electricity bill savings: £2,225
- Payback period: 7 years, 9 months
Benefits
- Avoided planning delays by using the stable roof
- Reliable whole-home backup for power outages
- Flexible, expandable system for future energy needs, optimised energy generation and reduced reliance on the grid
